Machining Capabilities
Multi-axis CNC equipment. Tight tolerances. Full material traceability. We run the processes your most demanding applications require.
Built for Precision. Proven in the Field.
Niagara Manufacturing operates a modern CNC shop floor in northwestern Pennsylvania, serving oil & gas and heavy equipment customers who can't afford tolerance failures in the field.
Every job runs through our documented quality system — from raw material certification to final inspection. We hold the tolerances your prints call out, and we back it with paperwork.
Every Process. One Shop.
01
CNC Turning
Our turning centers handle diameters from fractional to 24" and lengths up to 60". We run multi-axis live tooling for milled features in a single setup — reducing handling and maintaining concentricity on complex valve bodies, shafts, and downhole components.
24"
Max Diameter
60"
Max Length
±0.0005"
Tolerance
Yes
Live Tooling
02

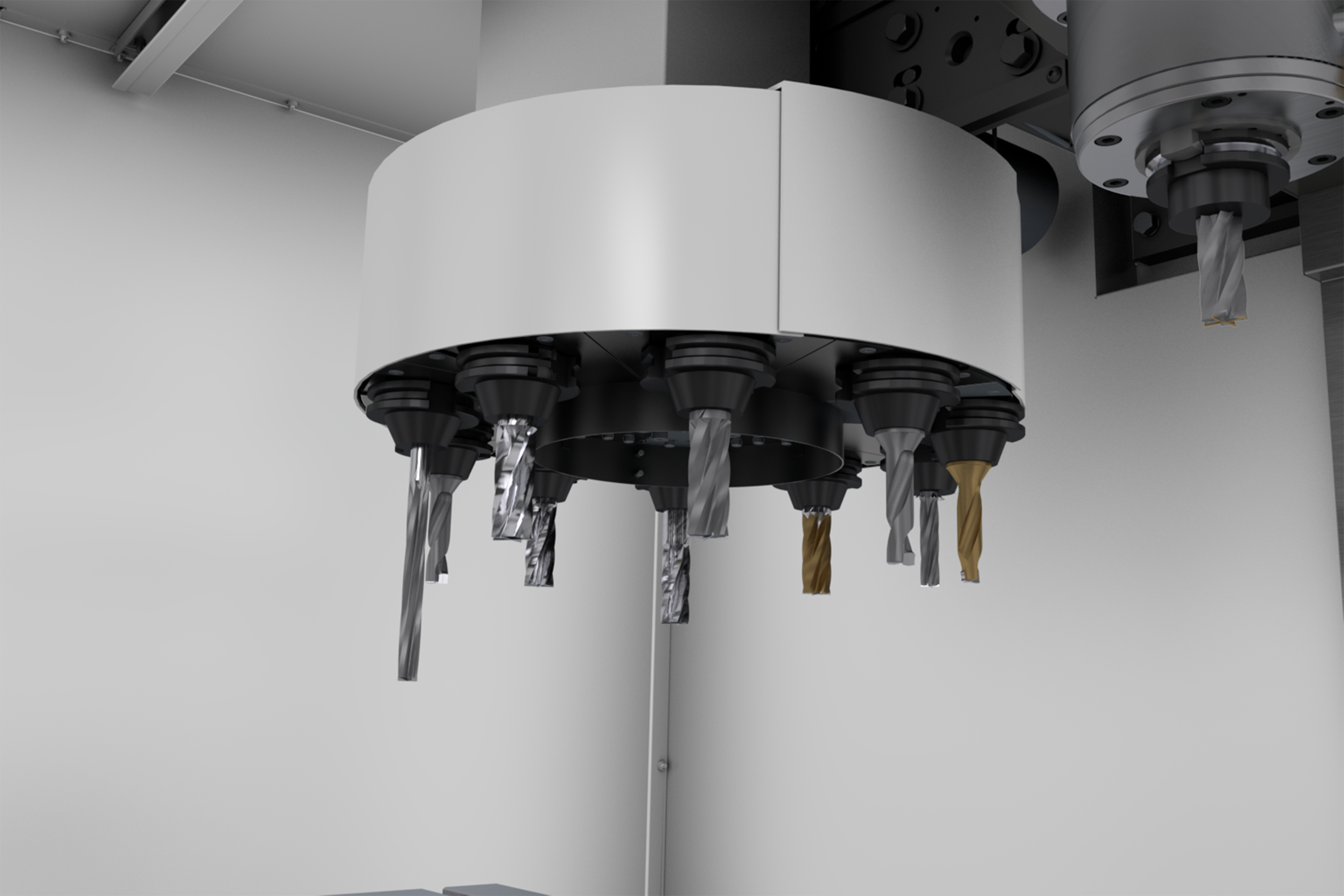

CNC Milling
From simple prismatic blocks to complex 5-axis contoured surfaces, our milling centers handle the full range. We run high-feed roughing and finish passes in the same setup, holding positional tolerances on bolt patterns, bores, and critical mating surfaces.
40" x 20" x 20"
Max Travel
3 and 4-axis
Axis
±0.001"
Tolerance
Pallet Changer
03
Boring
Precision boring for critical bore diameters in hydraulic cylinders, valve bodies, and pump housings. We achieve bore geometry and surface finish specifications that meet or exceed OEM requirements for sealing and wear performance.
0.5" – 18"
Bore Range
±0.0002"
Cylindricity
Down to 4 Ra
Surface Finish
Up to 50" dia.
Vertical Boring
04
Manual Turning
Our manual lathes handle jobs where CNC setup time isn't justified — prototype runs, field repair parts, and legacy components without digital prints. Experienced machinists run diameters up to 24" and lengths up to 120" with the same attention to tolerance as our CNC work.
24"
Max Diameter
120" cc
Max Length
±0.001"
Tolerance
Yes
Prototype Runs
05
Thread Cutting
We cut API, ACME, buttress, and custom thread forms on both OD and ID. Our thread inspection includes go/no-go gauging and optical comparator verification. Critical for downhole tool connections, pressure fittings, and valve stems.
API, ACME, Buttress, Custom
Thread Forms
Go/No-Go + Optical
Inspection
20"
Max OD Thread
Yes
Pressure Rated
06
Inspection & QC
Every job ships with a full inspection report. Our Team measures critical dimensions against your print tolerances. Material certifications, heat numbers, and test reports are maintained and available on request. We don't ship parts we wouldn't put our name on.
Full traceability
Material Certs
Every job
Inspection Report
Full Traceability
Certification
Materials We Machine
We work across a broad range of metals and alloys. If it's machinable, we've likely run it.
Steel
4140, 4340, 17-4 PH, 15-5 PH, 316 SS, 304 SS, 410 SS, 17-7 PH
Aluminum
6061, 7075, 2024, 5052
Exotic Alloys
Inconel 625/718, Hastelloy C276, Monel 400, Titanium Grade 5
Copper & Brass
C360 Free-Machining Brass, C110 Copper, Naval Brass
Our Equipment List
A full inventory of our CNC and precision machining equipment — built for tight tolerances and high-volume production runs.
Vertical Boring Mill
Webster Bennett
- 50" Diameter Table
- 19" Under the Rail
Lathes
- Monarch: 8" X 102" cc
- Mauser: 20" X 120" cc
- Cincinnati: 12" X 60" cc
- Thor: 12" X 60" cc
- Warner Swasey: 24" X 48" cc
Radial Arm Drill Press
- 9" Column X 4' Arm
CNC Vertical Mills
Haas VF-5
60" X Axis Travel
24" Y Axis Travel
25" Z Axis Travel
Haas VF-3
40" X Axis Travel
20" Y Axis Travel
25" Z Axis Travel
Haas Super Mini Mill
24" X Axis Travel
10" Y Axis Travel
16" Z Axis Travel
CNC Lathes
Haas SL40 Big Bore
55 HP
24" Chuck
44" cc
Daewoo
PUMA 85
12" cc
Additional Equipment
Bandsaw — Mastercut
12" Capacity
Keyseater
Up to 1.25" wide X 9" Stroke
Mills — Bridgeport
18" X 50" Tables
Horizontal Mill
15" X 63" Table
Mig Welder
Automatic Wire Feed
Miscellaneous
Tap Burner
Roll In Saw
Surface Grinder
4 Spindle Drill Press
Single Spindle Drill Press
Mig, Tig & Stick Welding Capabilities
Lifting Capacity to 1 Ton
Send Us Your Prints.
We'll review your drawings and respond with a competitive quote and lead time. No runaround.
